What Is RTV-2 Silicone and How Does It Work?

In material science, RTV-2 stands for Room Temperature Vulcanizing, Two-Component. It is a liquid raw material that cross-links into a solid elastomer at ambient temperatures, unlike HCR (High Consistency Rubber), which requires high heat and high pressure. This section analyzes the curing mechanisms, physical specifications, and critical differences required for effective material selection.

How It Works: Addition vs. Condensation Cure

The performance of an RTV-2 system is dictated by its curing chemistry. There are two primary classifications:

1. Condensation-Cure (Tin-Cure) Silicone

Using a tin-based catalyst, this legacy system cures by reacting with atmospheric moisture. It is cost-effective and extremely forgiving with contaminants, but releases an alcohol byproduct.

• Drawback: Linear shrinkage is high, typically between 0.5% and 1.0%, which causes long-term dimensional inaccuracy.

2. Addition-Cure (Platinum-Cure) Silicone

Using a platinum catalyst, this system cross-links the Part A vinyl-polymer and Part B hydride-functional polymer without generating volatile byproducts.

• Advantage: Near-zero linear shrinkage (strictly < 0.1%). For applications requiring extreme dimensional stability, such as rapid prototyping molding, platinum-cure RTV-2 is the required industrial benchmark.

RTV-2 Performance Specifications

When selecting an elastomer, technicians must analyze key metrics of the TDS (Technical Datasheet). Below is a comparison of TOPSIL’s primary RTV-2 material families, demonstrating objective viscosity and tear strength benchmarks:

Core Applications in B2B Production

Due to its high duplication fidelity and thermal resistance (-60°C to 250°C), RTV-2 silicone is widely specified across the following industrial sectors:

1. High-Precision Mold Making & Industrial Tooling

This is the most prevalent application for RTV-2. For creating flexible, production-line molds that require zero dimension change, addition-cure platinum RTV2 is the only choice. It is widely used to create master molds for:

• Resin Casting (Polyurethane, Epoxy, Polyester).
• Architectural & Concrete Casting (Concrete stamps, decorative stone).

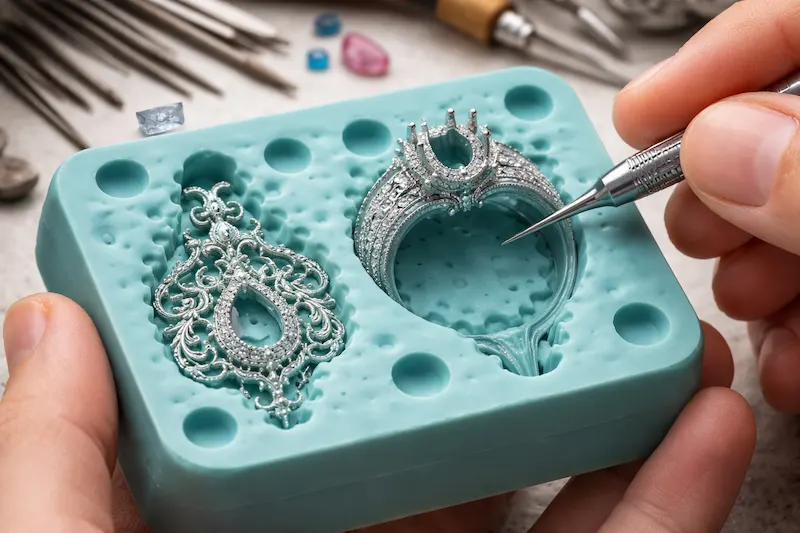

• Fundição por cera perdida for high-end jewelry or sculpture duplication.

Click here to see more mold-making applications

2. Electronics & Electrical Engineering

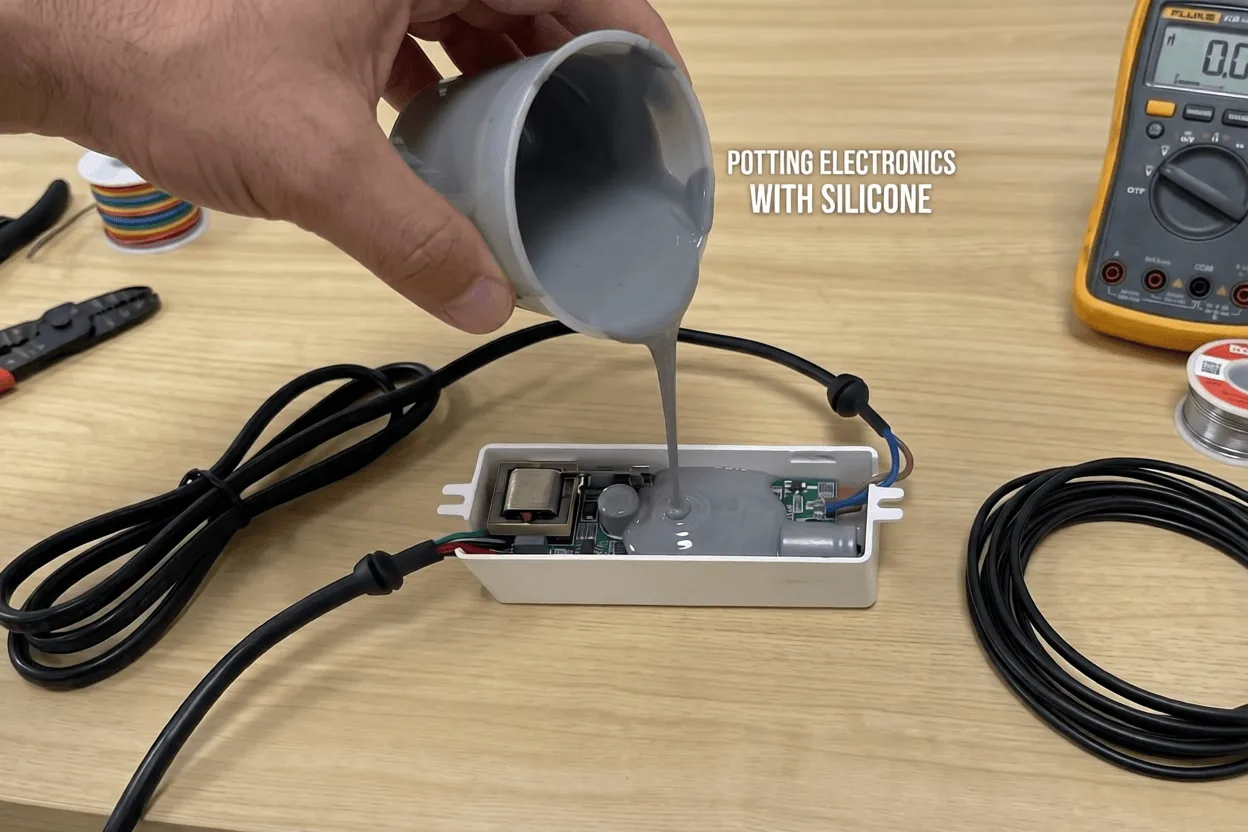

High-spec components require protection from moisture, vibration, and thermal stress. The selection of a specified RTV-2 potting compound prevents early failure on automotive and chip production lines.

3. Shoemaking and Prosthetics

When selecting silicone para fabricação de palmilhas, engineers prioritize specific durometers (hardness levels) to achieve optimized cushioning, rebound, and hypoallergenic biocompatibility.

Performance Tuning: How Temperature and Impurities Impact Cure

In regulated production environments, every industrial shipment of TOPSIL raw material comes with a Batch COA to guarantee consistent initial properties. However, workshop environmental factors can significantly shift the material’s curing curve:

• Thermal Impact: If the workshop ambient temperature is below 20°C (68°F), addition-cure platinum silicone may experience extremely slow curing times. Conversely, temperatures exceeding 30°C will vastly accelerate the cure cycle, reducing the material’s necessary pot life and de-airing window.
• Cure Inhibition: Platinum catalysts are extremely sensitive. Trace amounts of sulfur (in modeling clay), latex gloves, or uncured RTV-1 silicone caulk will permanently “poison” the catalyst, causing a tacky, incomplete cure at the interface.

FAQ: RTV-2 Performance and Customization

Q: Why specify RTV-2 for large casting projects?

A: Unlike one-part (RTV-1) silicones, which rely on atmospheric moisture and are limited to shallow seals, RTV-2 cures uniformly throughout the entire mass due to its chemical reaction. This makes it essential for deep-section casting, mold making, and electronic potting where a complete, through-cure is required. 👉 For a deep dive, read our guide: RTV Silicone vs RTV-2 vs Silicone | Principais diferenças

Q: Can we alter the material properties in the workshop?

A: Yes. Technicians can adjust viscosity by adding silicone thinner/solvents or increasing speed by using temperature. For specialized industrial printers, using Almofada antiestática de silicone para impressão involves custom-formulating a static-free matrix to ensure perfect color transfer.
